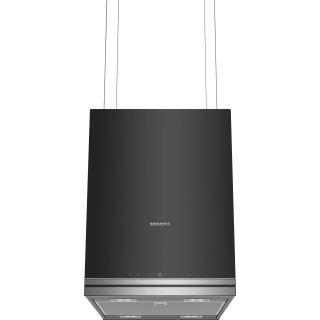

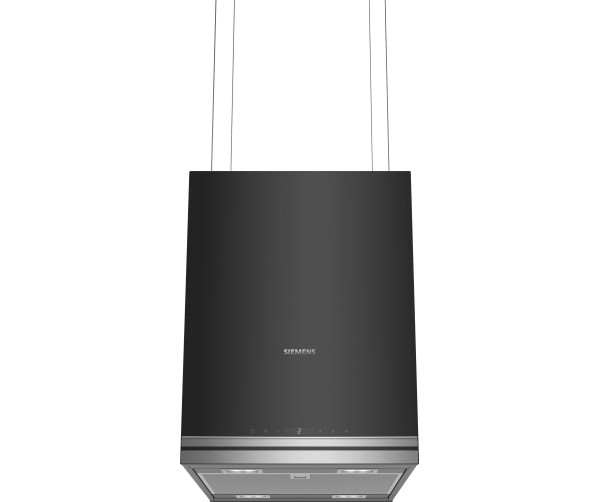

iQ700
Eilandschouwkap
37 cm
Zwart
Algemene informatie:
- 37 cm Eilandschouwkap

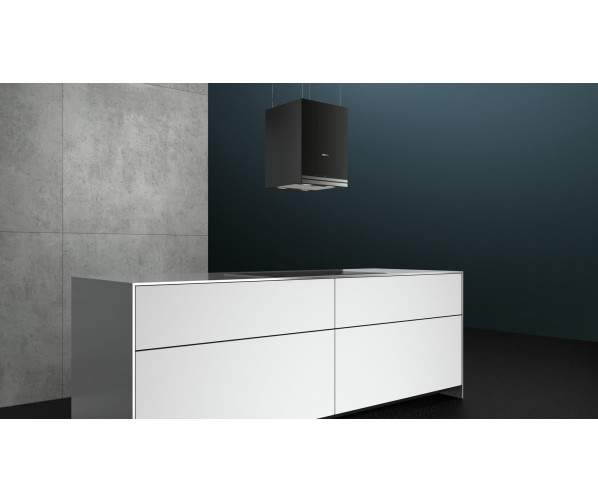

- Voor plafondmontage boven het kookeiland
- Geschikt voor recirculatie
- Efficiënte koolborstelloze iQdrive technologie
- Afzuigcapaciteit in recirculatiestand: Max. normaalstand: 390 m³/hIntensiefstand: 510 m³/h
- Geluidsdruk/-niveau bij recirculatie: Max. normaalstand: 56 dB(A) / 69 dB (re 1 pW)Intensiefstand: 61 dB(A) / 74 dB (re 1 pW)
- Extreem stille werking
Bediening:

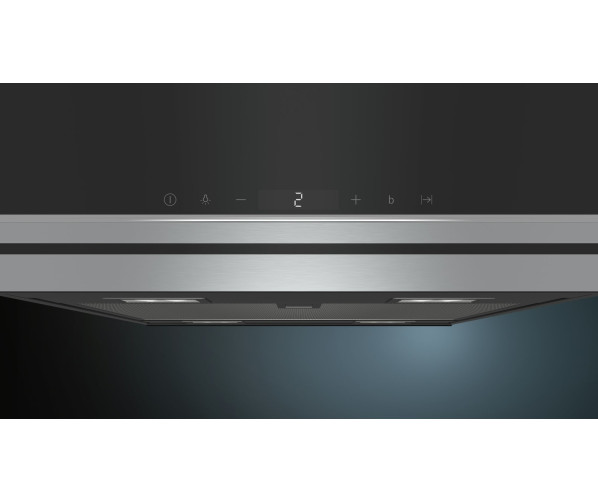

- touchControl-bediening met
- 5 Snelheden inclusief 2 intensiefstanden
- Intensiefstand met automatische terugschakeling na 6 minuten
- Boost functie
Comfort / Zekerheid:
- Dubbelzijdig zuigende ventilator
- Automatische nalooptijd (10 minuten)

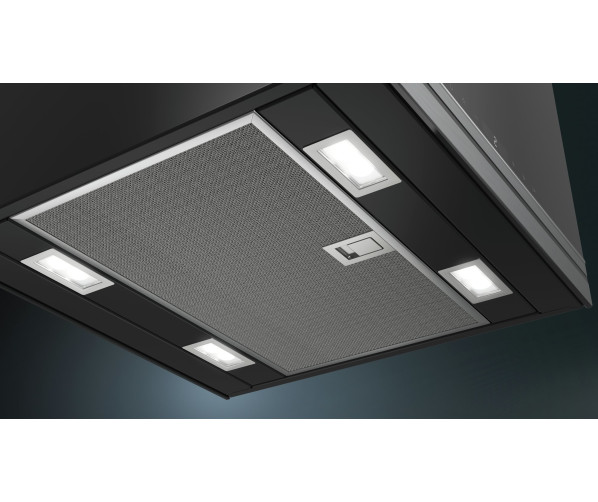

- Metalen vetfilters, uitwasbaar

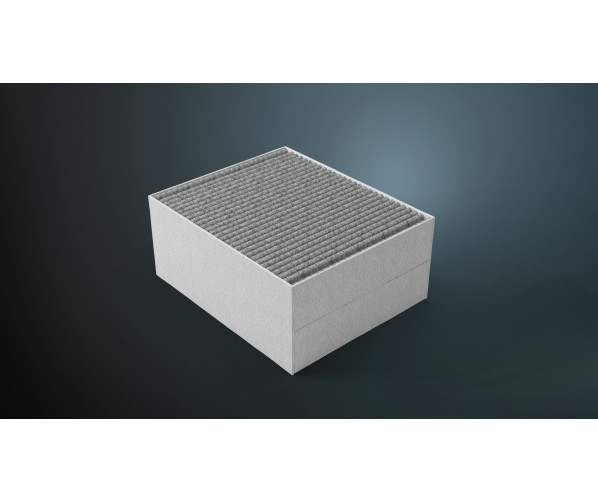

- Elektronische verzadigingsindicatie voor vetfilter(s) en koolstoffilter
- 4 x 3 W LED-verlichting
- Kleurtemperatuur: 3500 K
- Lichtintensiteit: 1000 lux
- Dimfunctie voor de verlichting met traploze instelling van de lichtsterkte
- softLight
Energiewaarden*:
- Max. geluidsniveau op normaalstand: 69 dB
Technische data:
- Afmetingen (hxbxd): 501 x 370 x 377 mm
- Aansluitwaarde: 272 W
- Inclusief montageset voor op het plafond, easy installatie met slechts 4 schroeven, lengte kabel afstelbaar (20 cm - 100 cm)
Technische informatie:
Algemeen
- Breedte (mm): 37 cm
- Diepte (mm): 377 mm
- Inbouw/vrijstaand: Inbouw
- Luchtafvoer: Recirculatie
- Max. recirculatie (m3/u): 390
- Geluidsdruk max. normaalstand: 56
- Soort bedieningselementen: 2x7-segment, Touch Control
- Energie-efficiëntieklasse (2010/30/EG): n.v.t
Design
- Kleur ombouw: zwart
- Materiaal vetfilter: Aluminium wasbaar
- Soort vetfilter: Cassettefilter
- Type installatie: Eiland
- Aantal motoren: 1
- Luchtafvoer: Recirculatie
- Uitvoering: Schouw
Aansluiting
- Aansluitwaarde (W): 272 W
- Lengte elektriciteitssnoer (cm): 140 cm
- Frequentie (Hz): 60; 50 Hz
- Totaal vermogen van de motoren (W): 260 W
- Spanning (V): 220-240 V
